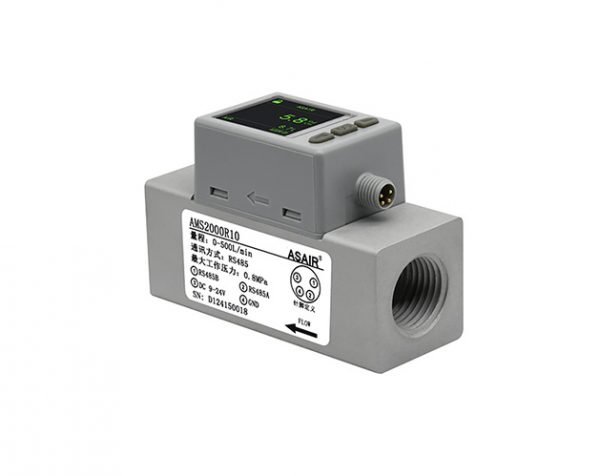

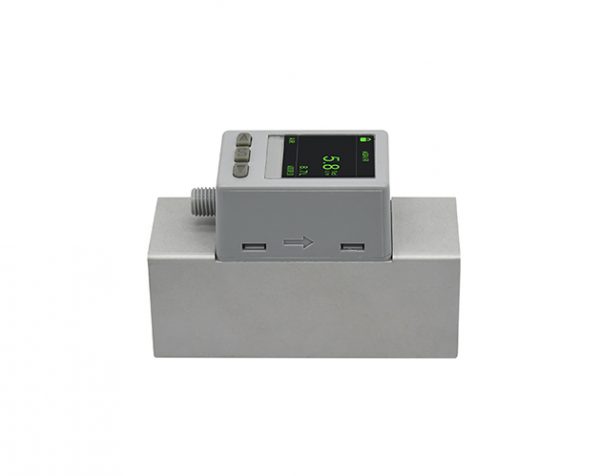

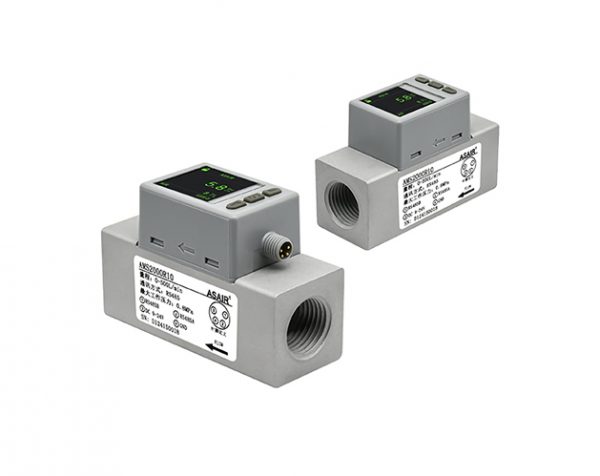

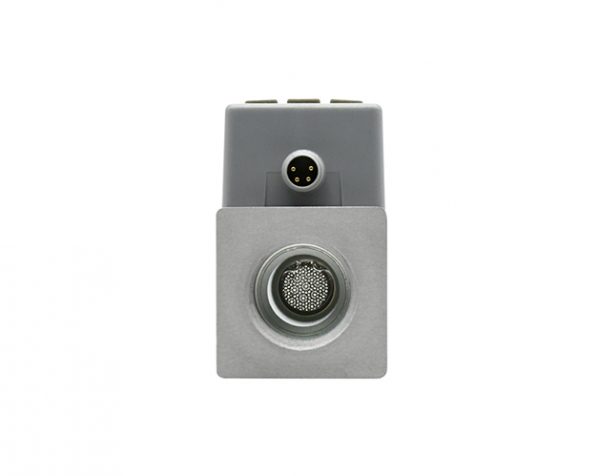

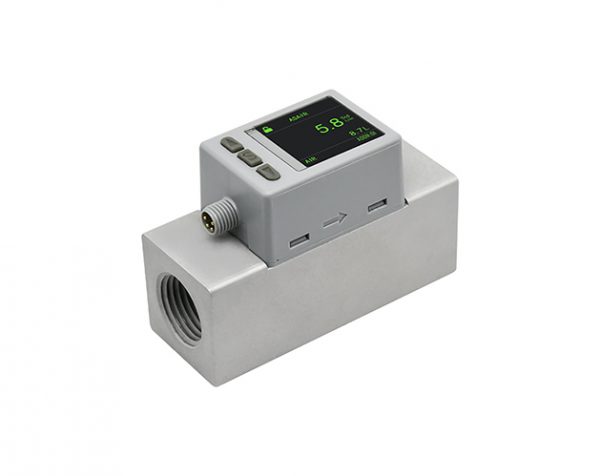

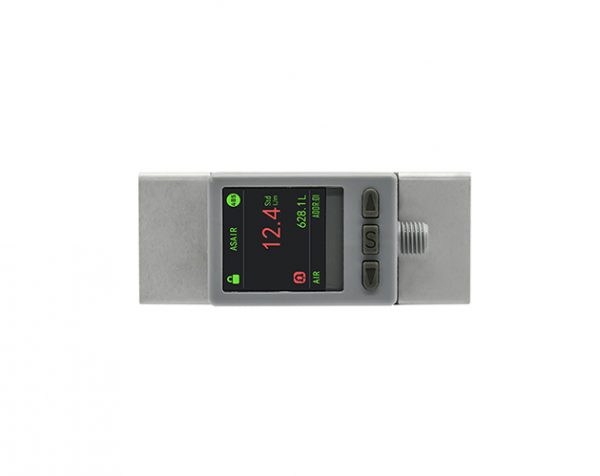

AMS2000 Mass Flow Meter

Various gas measurements
Good repeatability
Standard Modbus RTU communication
9~24V DC Power supply



Flow Sensor
Don't hesitate to e-mail us with any questions or inquiries, we should be happy to answer your qusetion.
Please complete the form and we will contact you within 1 business day.
Category:

1.Product summary

AMS2000 is a thermal mass flow meter that calculates the mass flow of the gas by measuring the change in resistance. The sensor adopts the self-developed MEMS mass flow chip. It has advantages such as easy-to-use, high accuracy, high stability, high and low temperature resistance, good linearity, and fast response time. AMS2000 mass flow controller is calibrated before delivery, the range, accuracy, repeatability, response time… are all calibrated.

2.Application

AMS2000 can be used to monitor the mass flow of air, nitrogen, argon, carbon dioxide, oxygen and other dry, clean and non-corrosive gases (except for flammable and explosive gases). It can be widely used in university scientific research, fire protection, environmental monitoring, tobacco, smart agriculture, food, medicine and other industries.

Flow Sensor
Don't hesitate to e-mail us with any questions or inquiries, we should be happy to answer your qusetion.
Please complete the form and we will contact you within 1 business day.

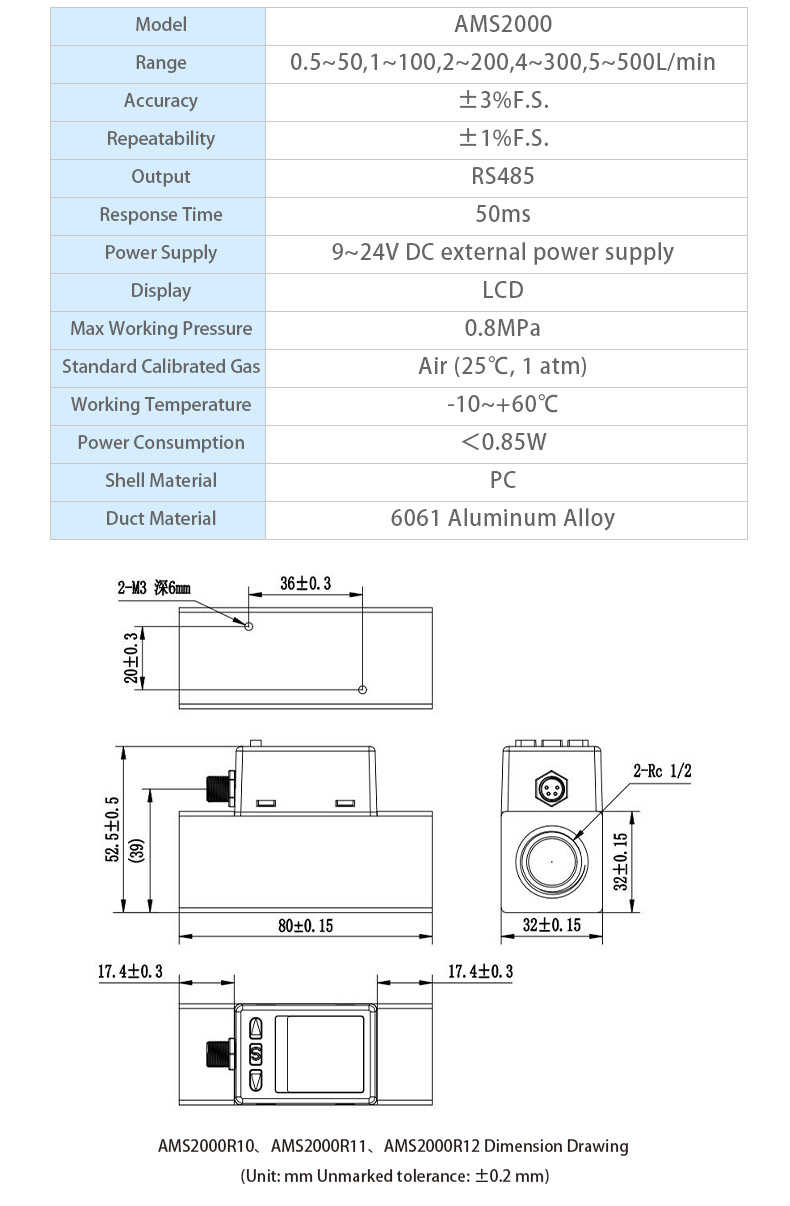

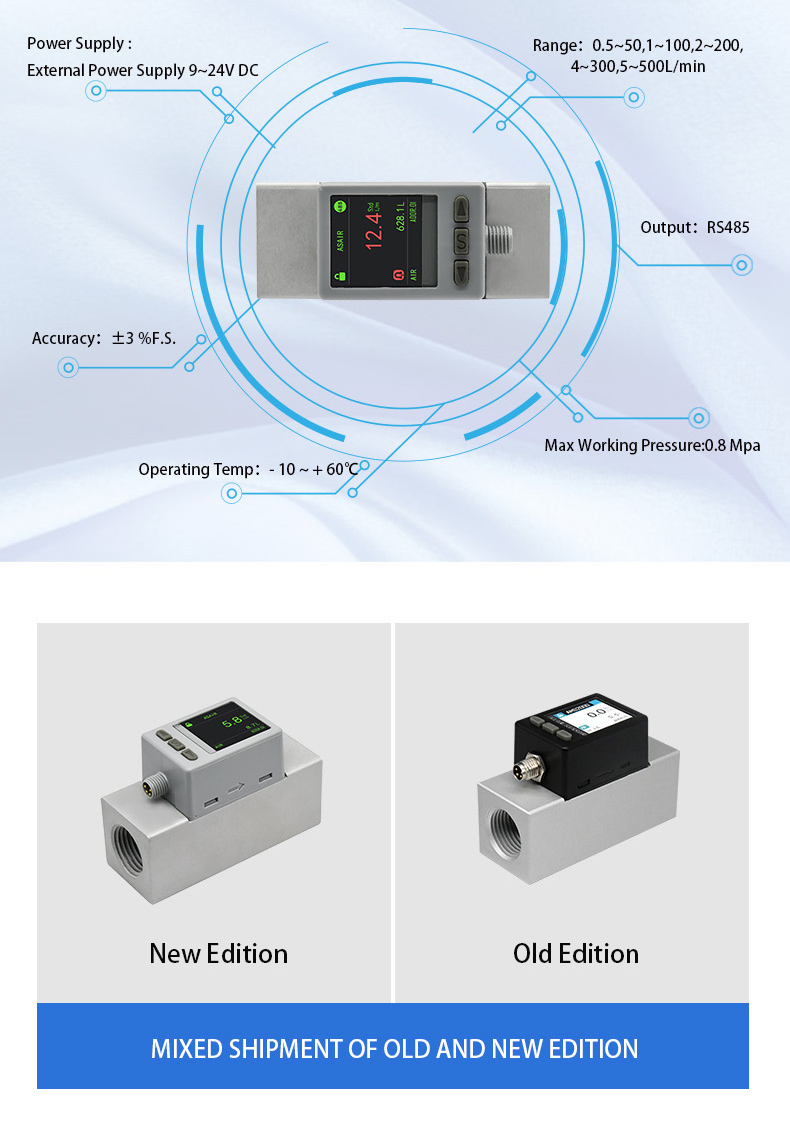

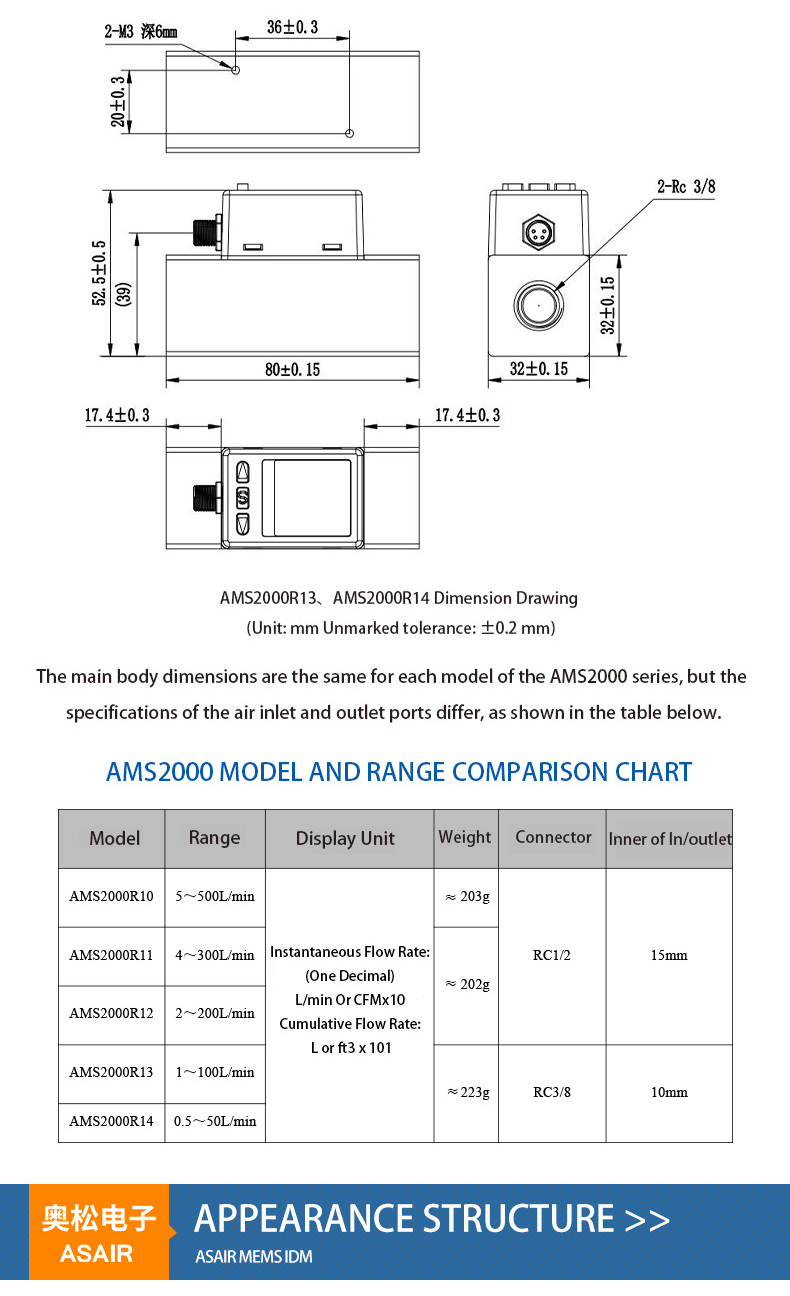

Model Number

AMS2000

Material

304

Range

50L, 100L, 200, 500L

Accuracy

±3%F.S.

Power supply

9~24VDC

Output

RS485

Measuring medium

Air, N2, O2, CO2, Ar
