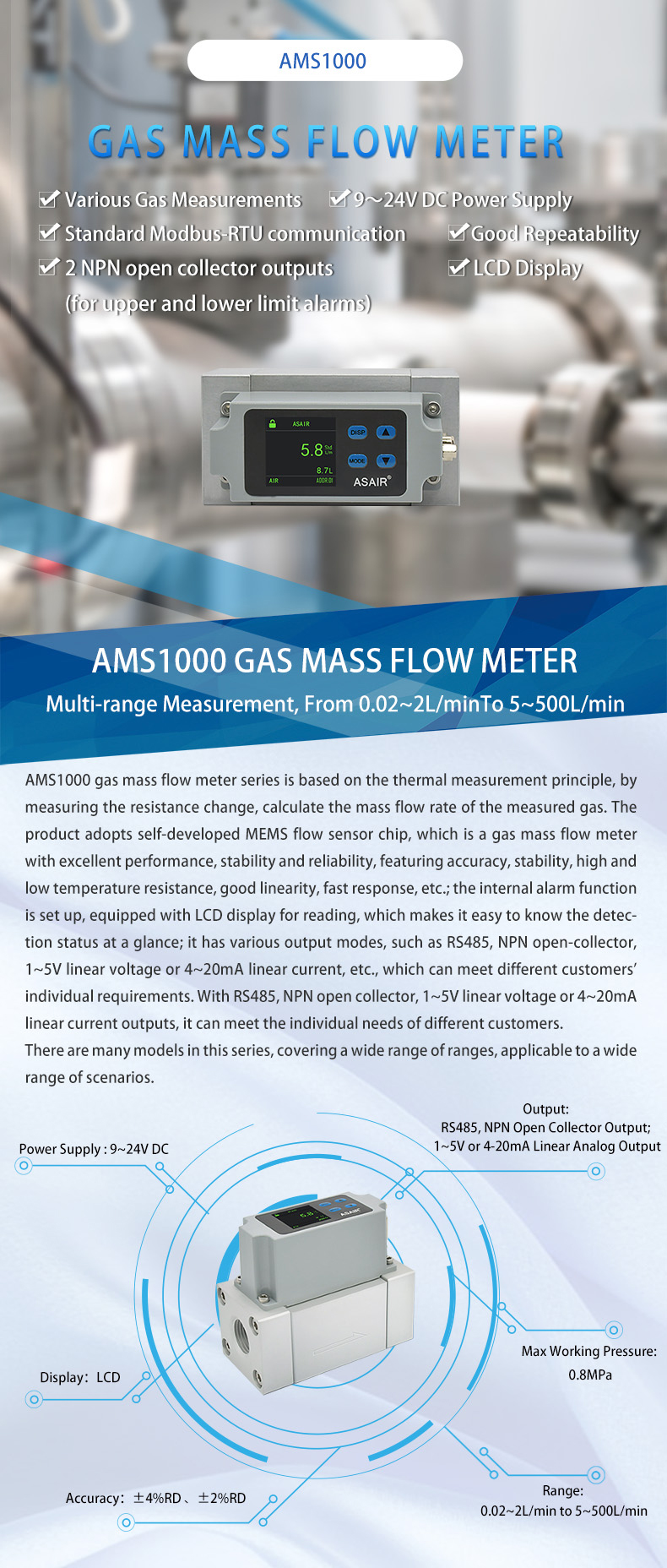

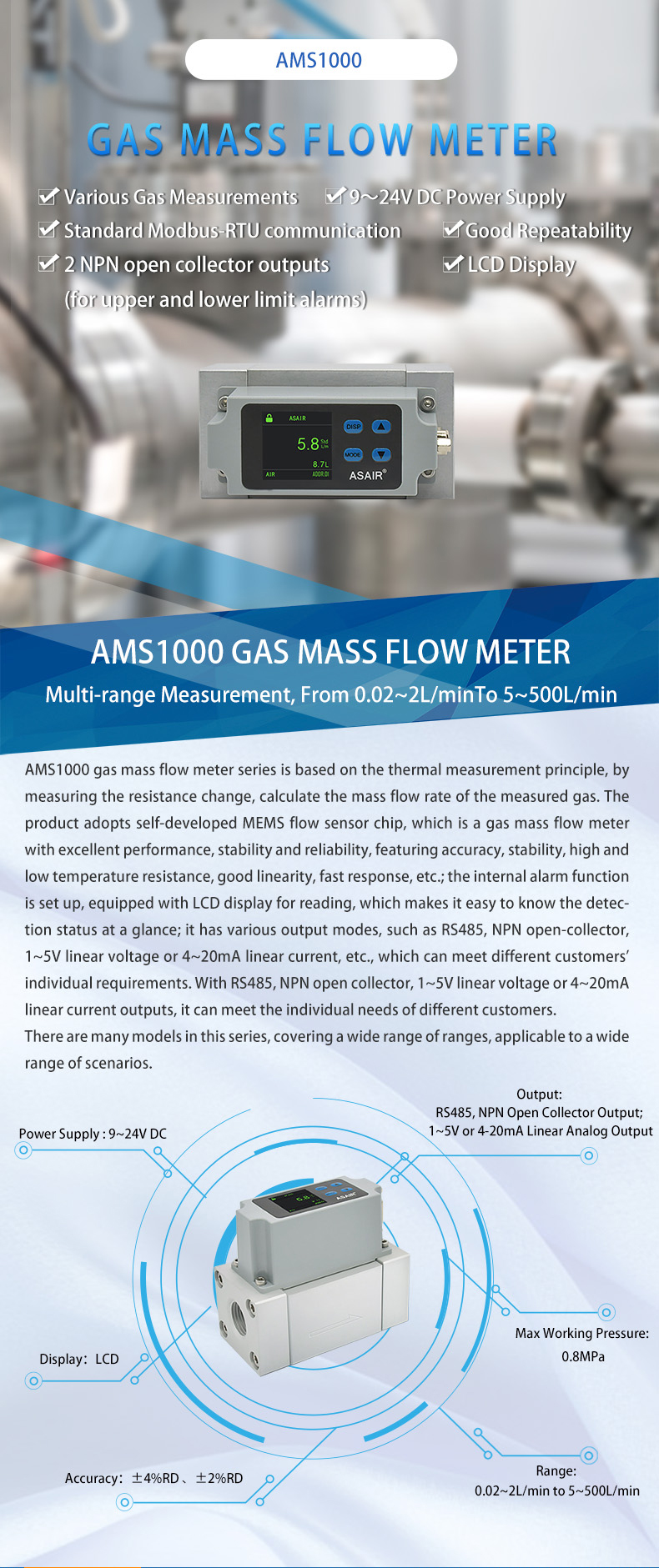

AMS1000 Gas Mass flow sensor

⚫ Measure mass flow and temperature simultaneously
⚫ Good repeatability
⚫ Various gas measurements
⚫ Standard Modbus-RTU communication
⚫ Open collector output with two NPN (Used for upper and lower limit alarm)
⚫ 1~5V linear voltage output or 4~20mA linear current output

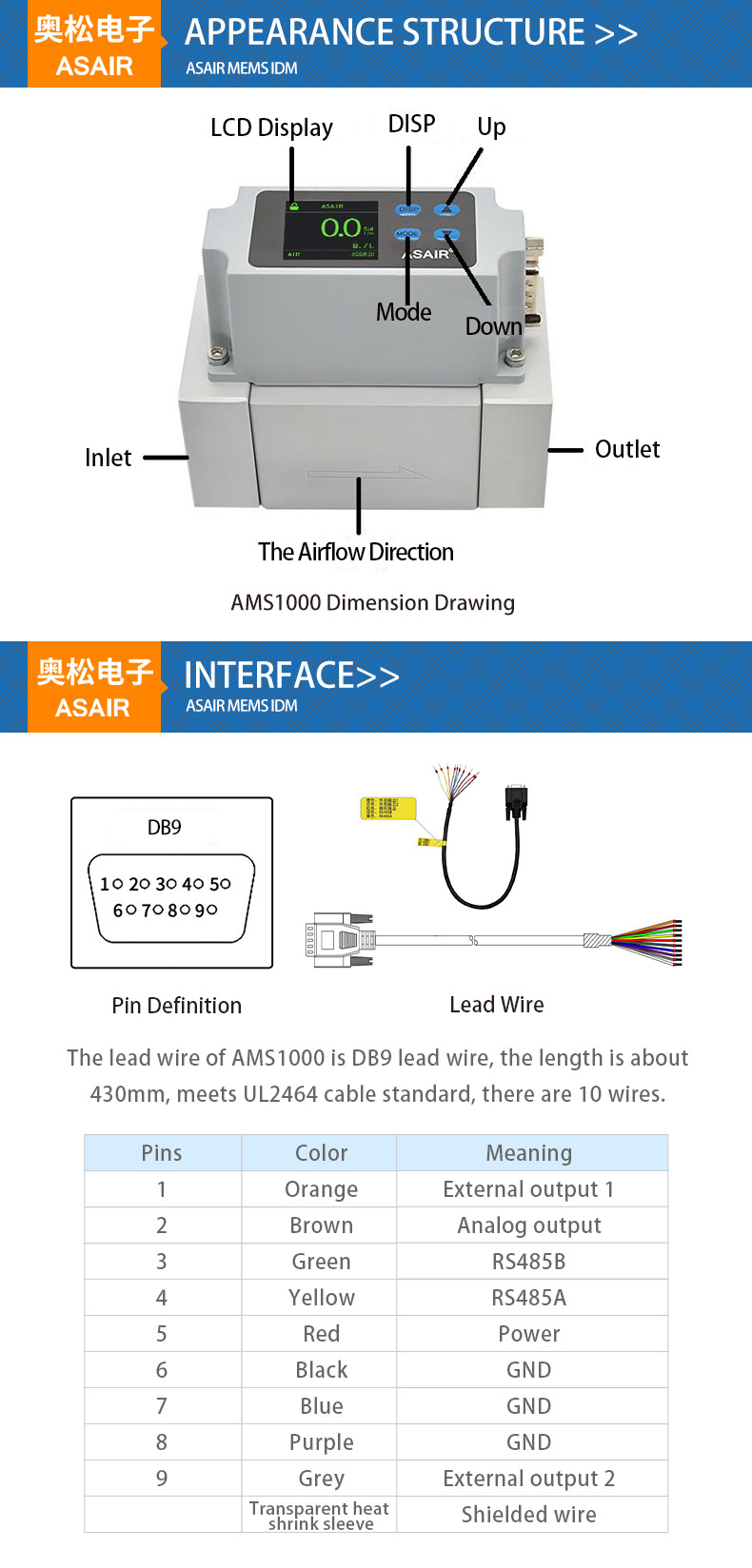

⚫ LCD display
⚫ 9~24V DC power supply



Flow Sensor
Don't hesitate to e-mail us with any questions or inquiries, we should be happy to answer your qusetion.
Please complete the form and we will contact you within 1 business day.
Category:

Summary:

AMS1000 is a thermal mass flow m:eter that calculates the mass flow of the gas by measuring the change in resistance. It adopts the self-developed MEMS mass flow chip. It has advantages such as simple to use, high accuracy, high stability, high and low temperature resistance, good linearity, and short response time.
The measuring range, accuracy, repeatability, response time, etc. of AMS1000 are all calibrated before leaving the factory.

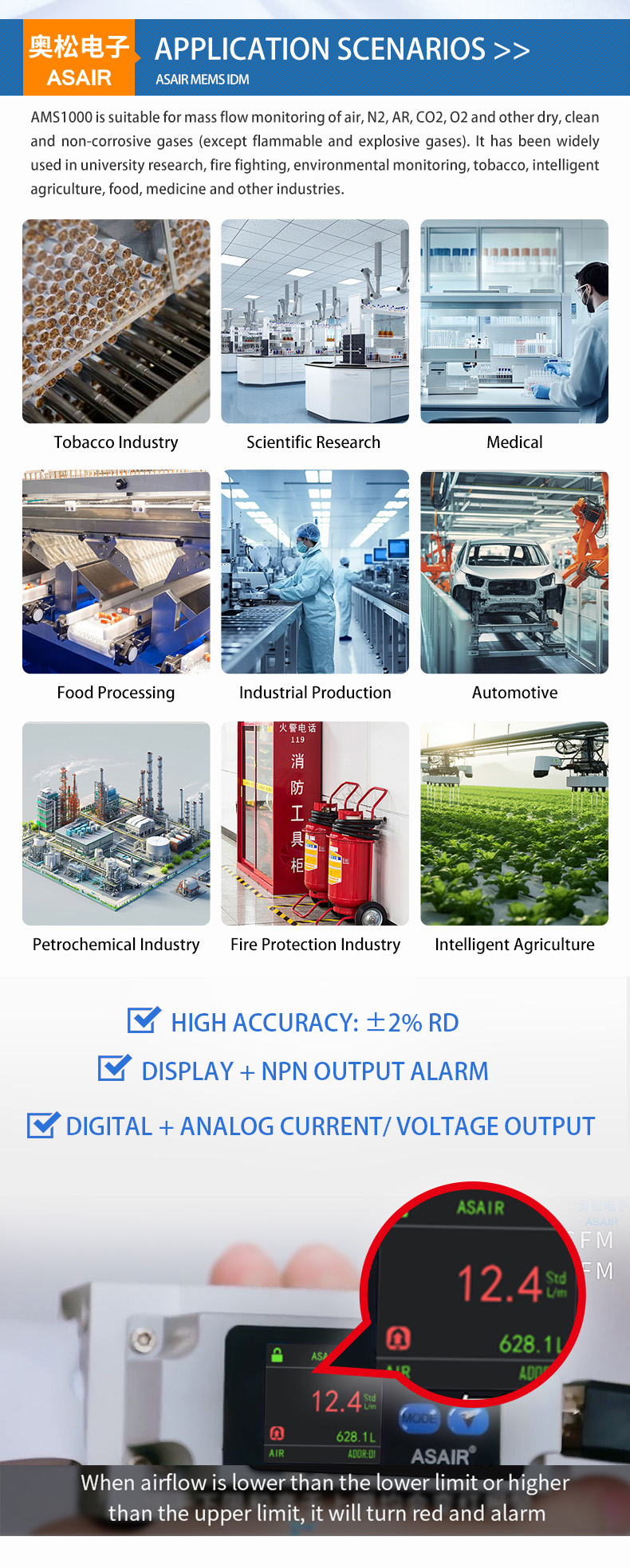

Application:
AMS1000 can be used to monitor the mass flow of air, nitrogen, argon, carbon dioxide, helium, oxygen and other dry, clean and non-corrosive gases (except for flammable and explosive gases). It can be widely used in fields, such as university scientific research, fire protection, environmental monitoring, and industries of tobacco, smart agriculture, food and medicine.

Flow Sensor
Don't hesitate to e-mail us with any questions or inquiries, we should be happy to answer your qusetion.
Please complete the form and we will contact you within 1 business day.

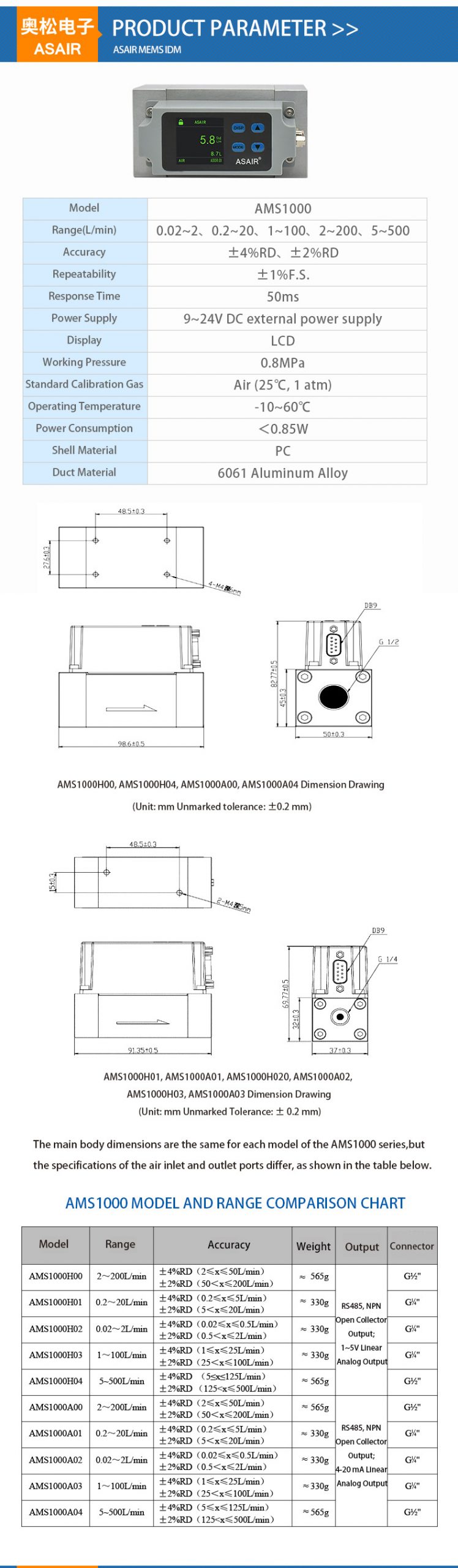

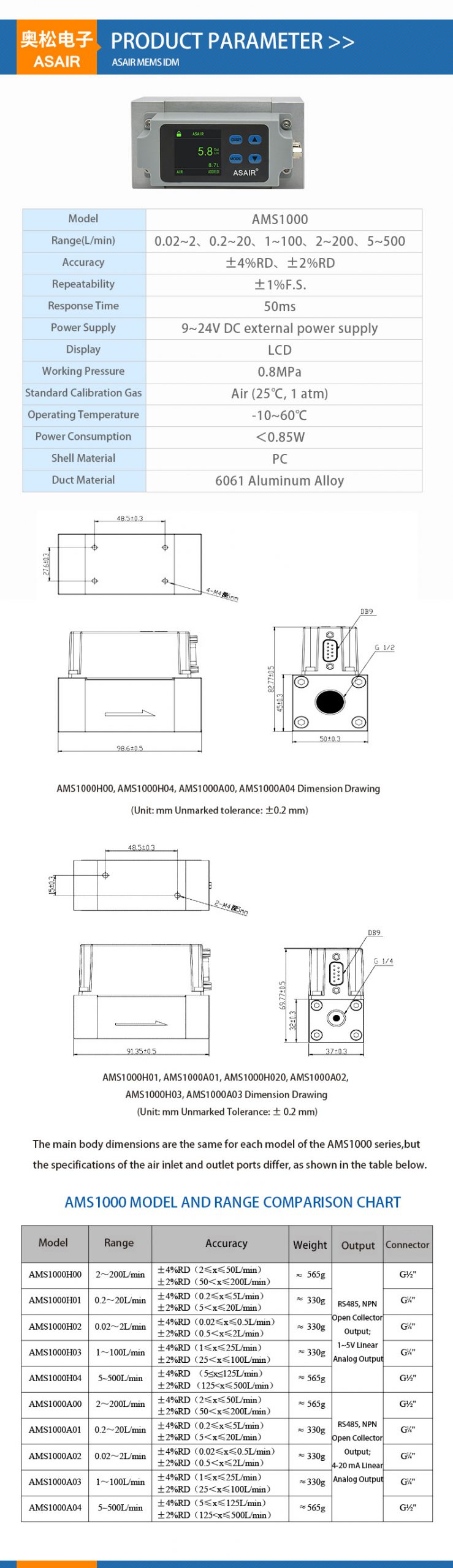

Model

AMS1000

Range

0~2L, 0~20L, 0~100L, 0~200L, 0~500L

Output

1-5V, 4-20mA

Accuracy

±4%RD or ±2%RD

Power supply

9~24V DC externalpower supply

Measuring medium

Air, N2, O2, CO2, Ar

L/T

5-7 working days
