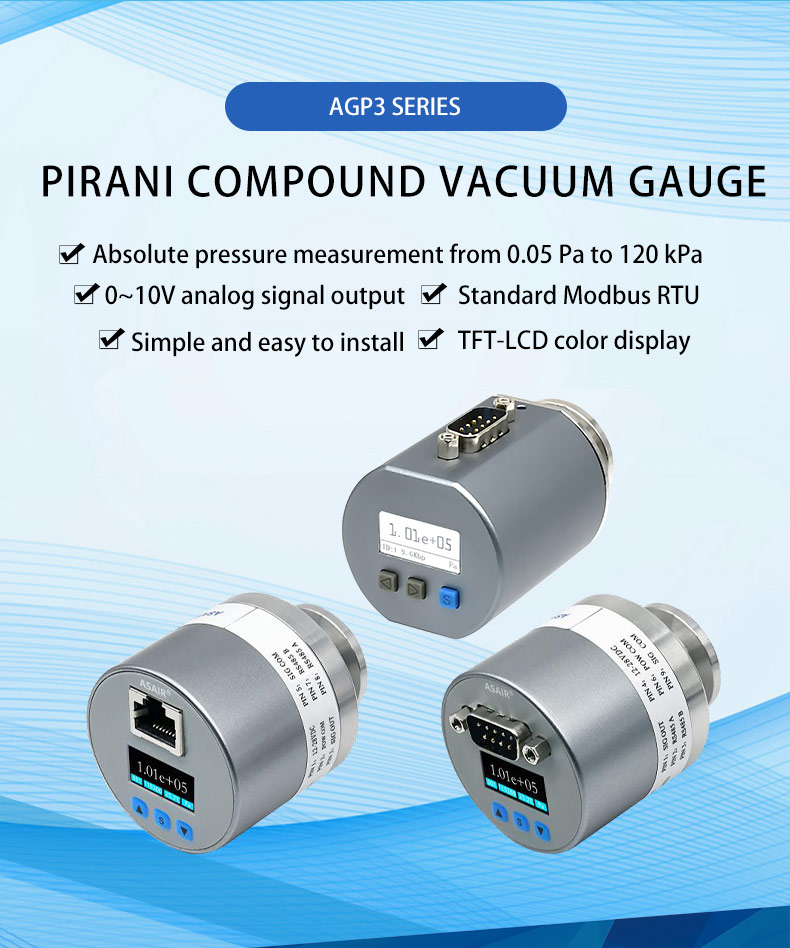

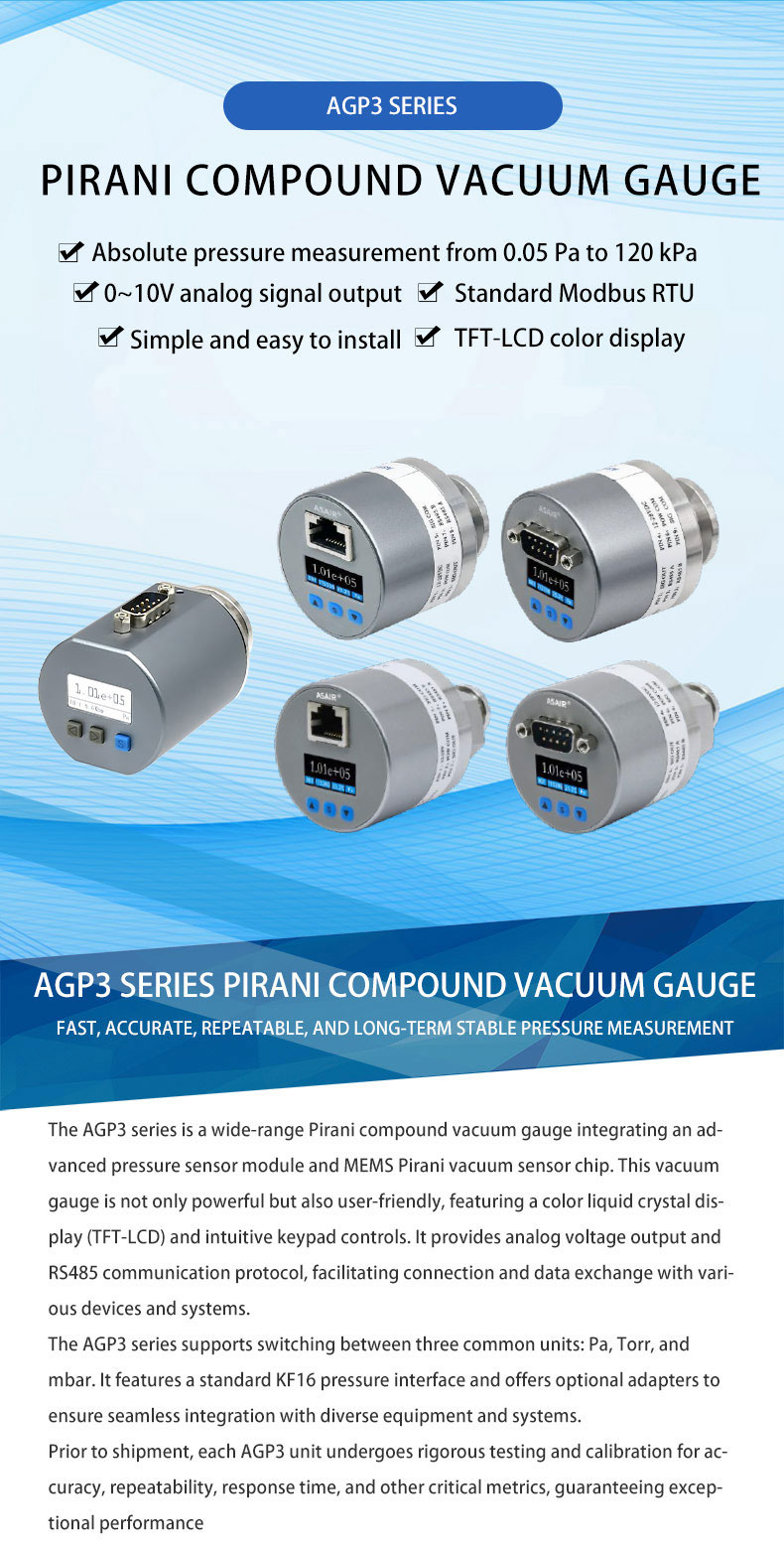

AGP3000 Pirani Vacuum Gauge

High precision
Long-term stability
Easy to install
Fast response
0~10V analog output
Standard Modbus RTU



AGR10
Don't hesitate to e-mail us with any questions or inquiries, we should be happy to answer your qusetion.
Please complete the form and we will contact you within 1 business day.
Category:

1.Product summary

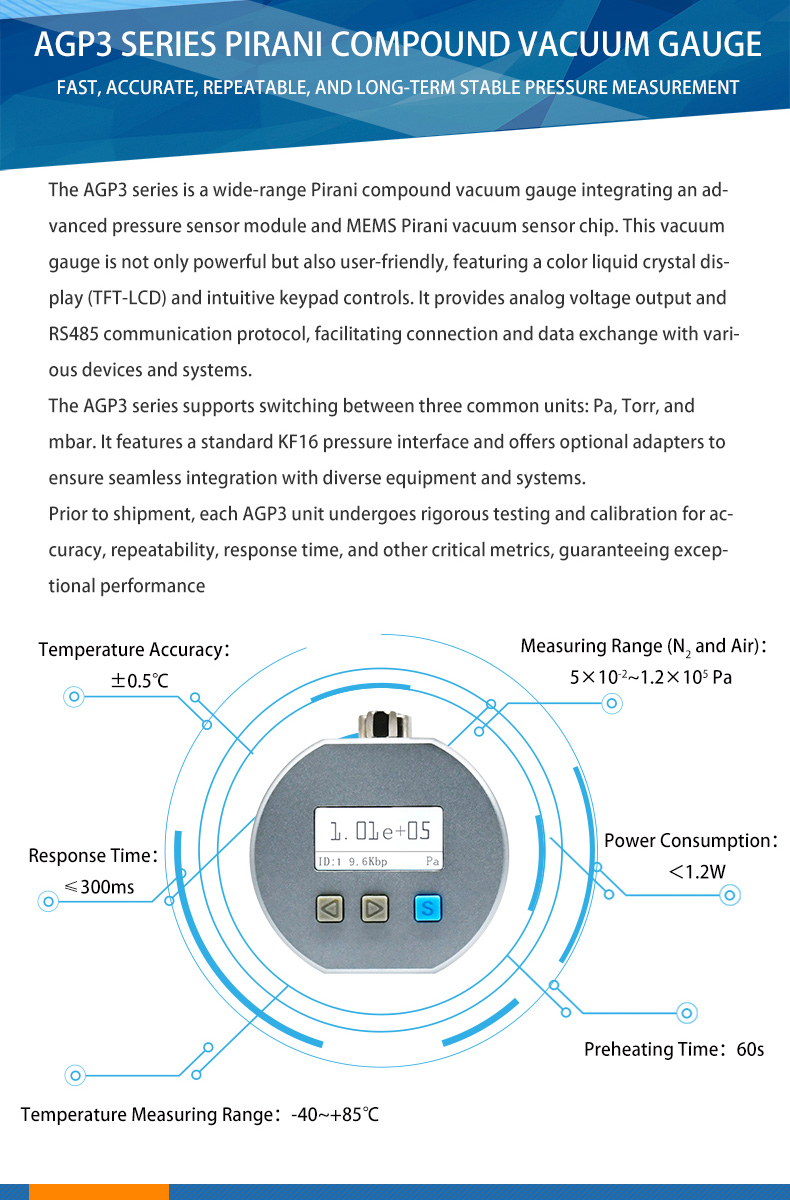

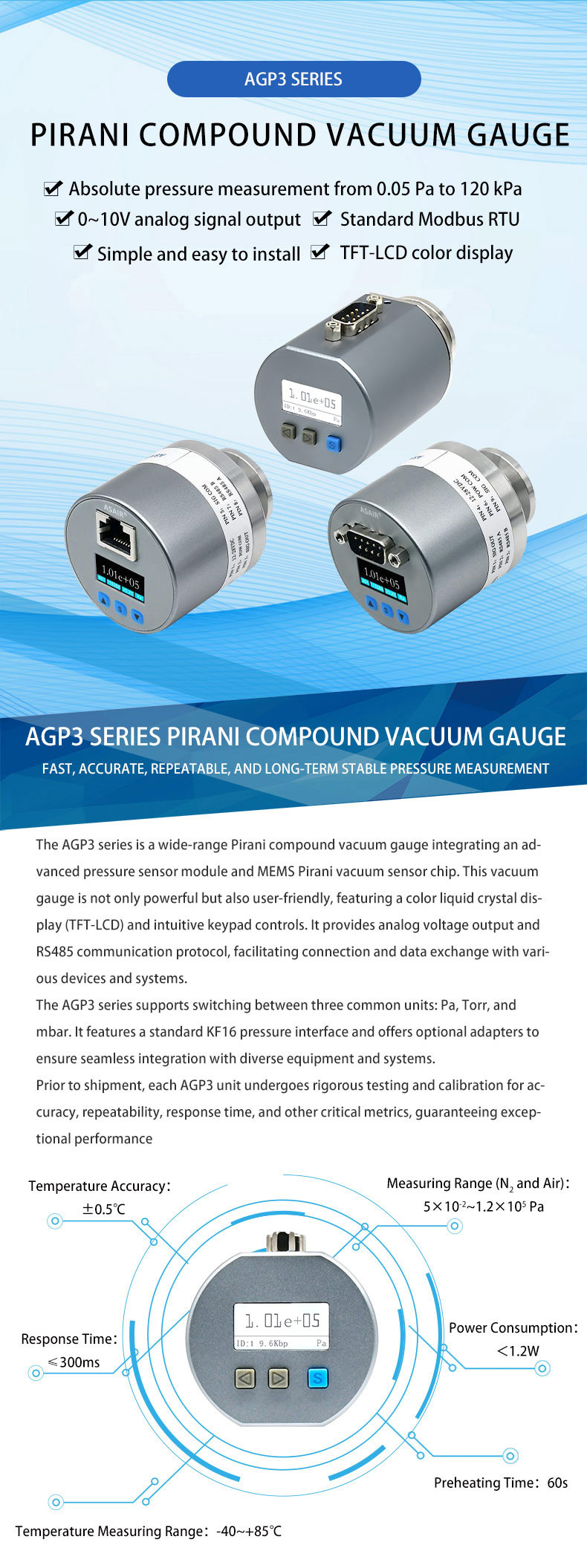

The AGP3000 is a product that uses MEMS sensor chips and Wheatstone bridge characteristics to detect air pressure. Sensor with color display and key control, analog voltage output, RS485 communication protocol. The product can maintain high reliability under operating pressure, with low power consumption, high precision, excellent stability, good repeatability, light weight, easy maintenance and other advantages. Before leaving the factory, AGP3000 precision, repeatability, response time and other indicators are strictly calibrated.

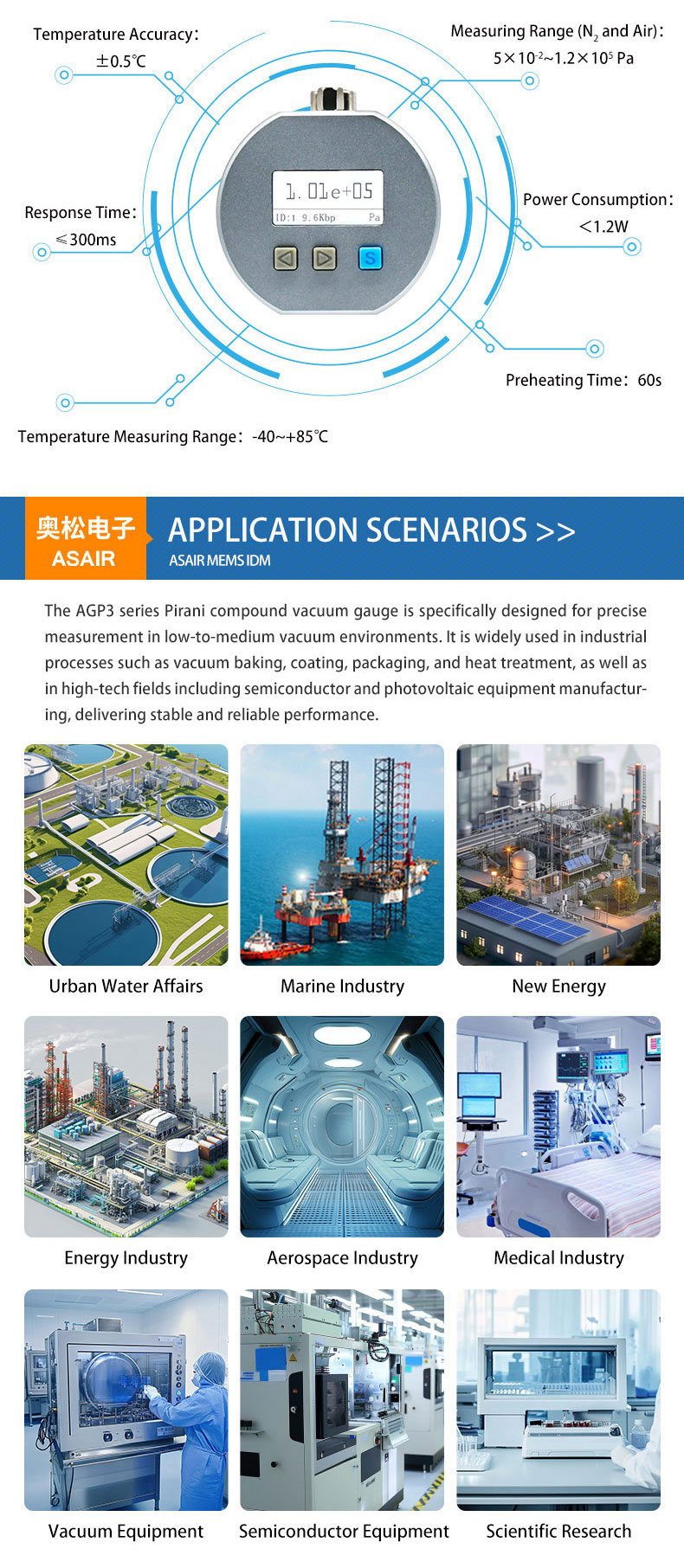

2.Application

Vacuum baking, vacuum packaging, vacuum coating, vacuum heat treatment, vacuum brazing, vacuum coating, metal smelting, semiconductor intelligent equipment, photovoltaic equipment and other industries.



AGR10
Don't hesitate to e-mail us with any questions or inquiries, we should be happy to answer your qusetion.
Please complete the form and we will contact you within 1 business day.

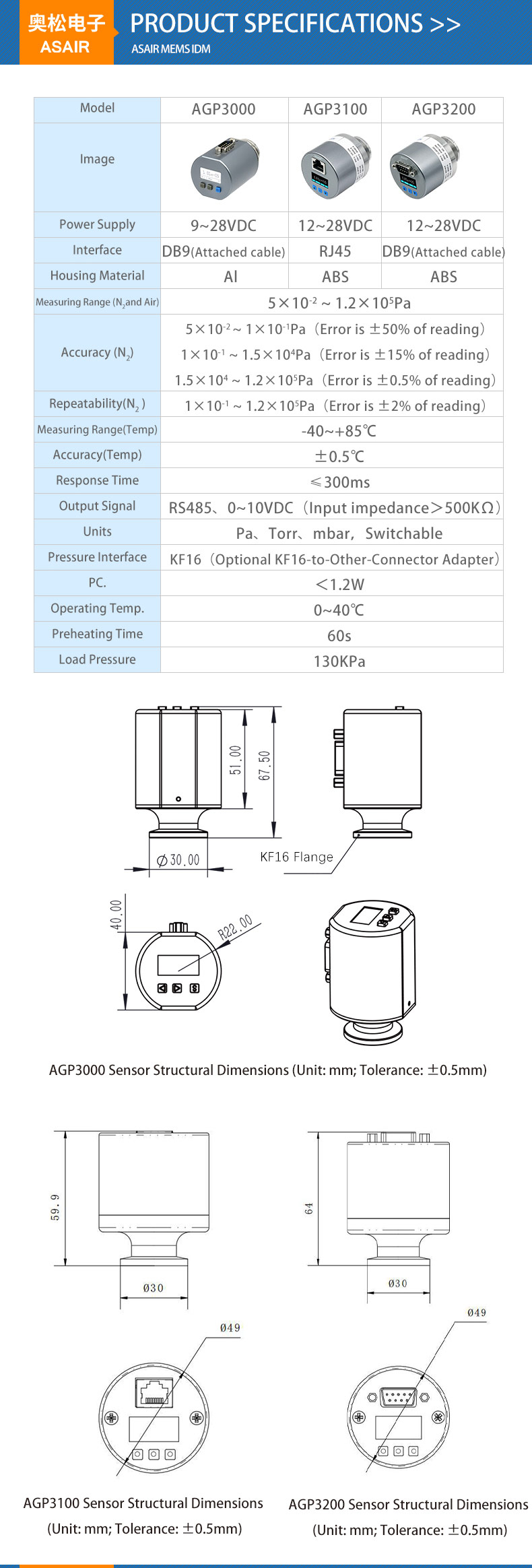

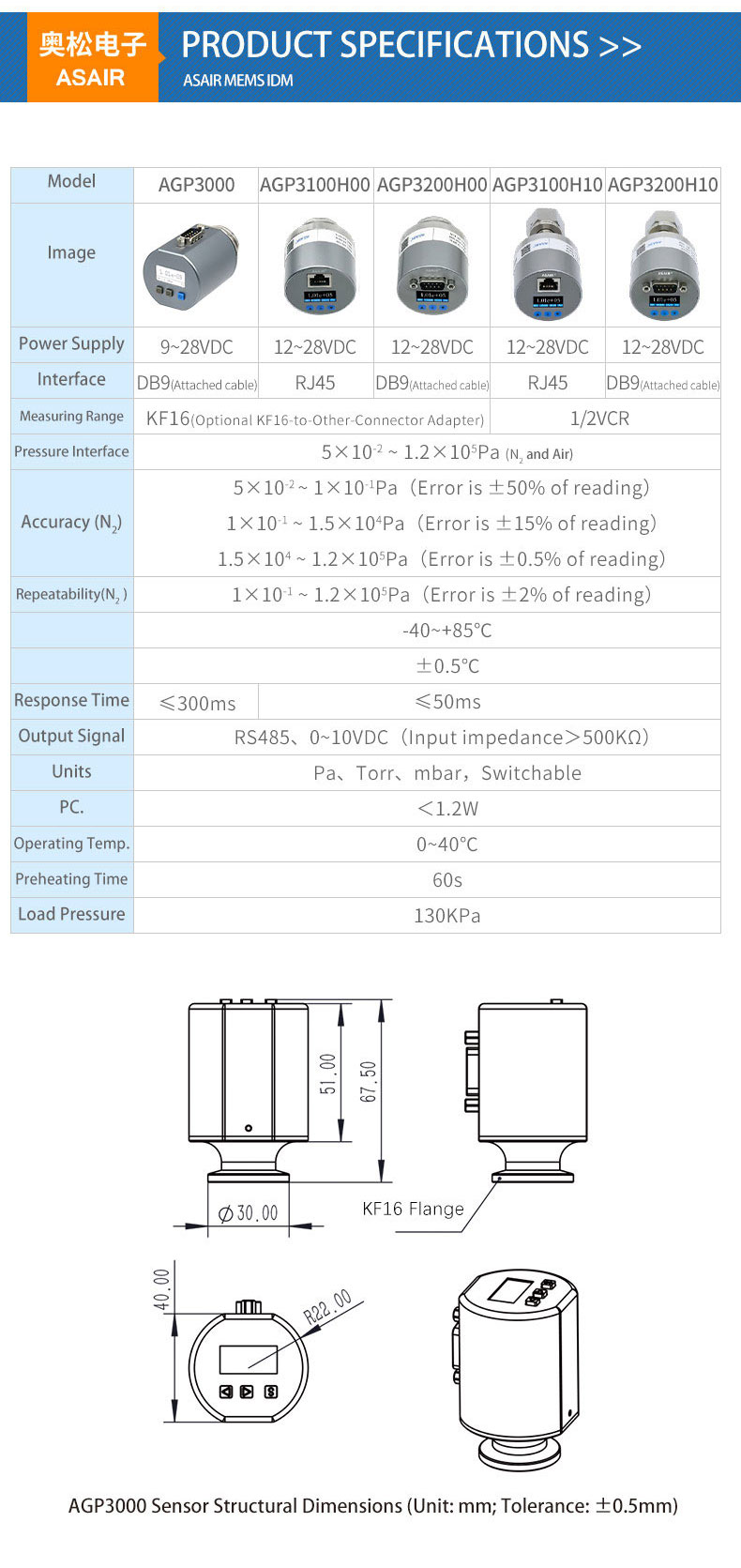

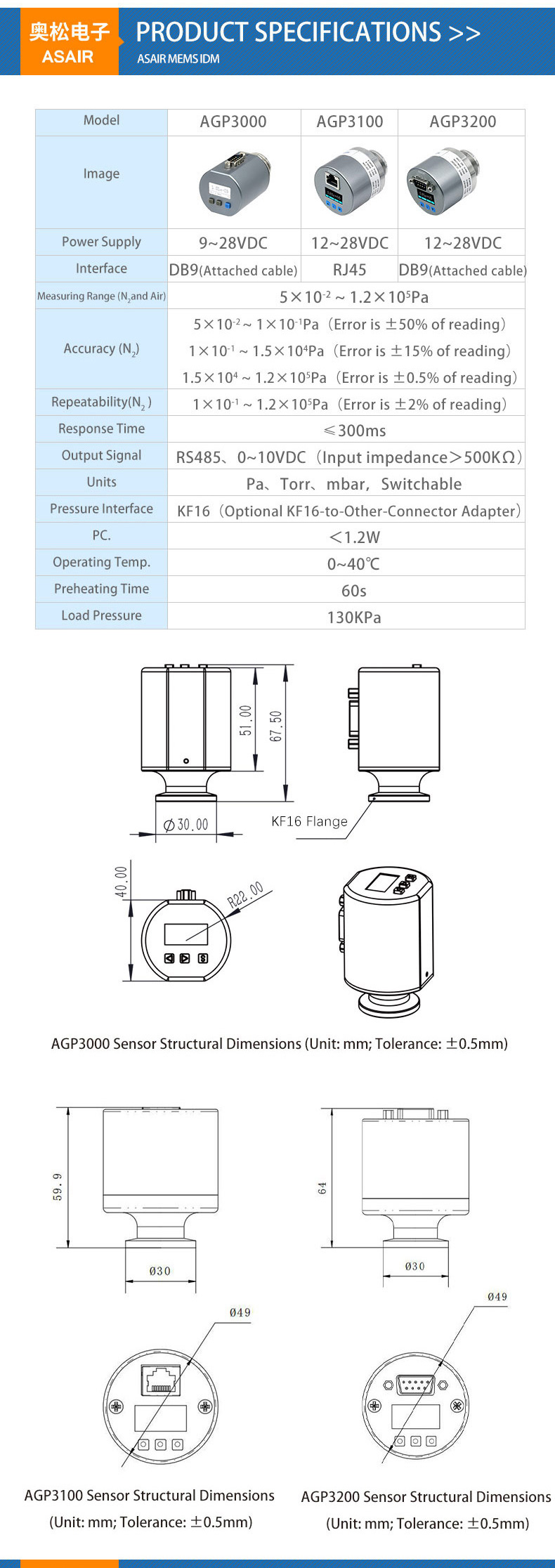

Model

AGP3000

Power

9~24 V

Range(N2and Air)

5×10-2~1×105 Pa

Barometric calibration range

1×10-1 ~ 1×105 Pa

Power dissipation

1 W

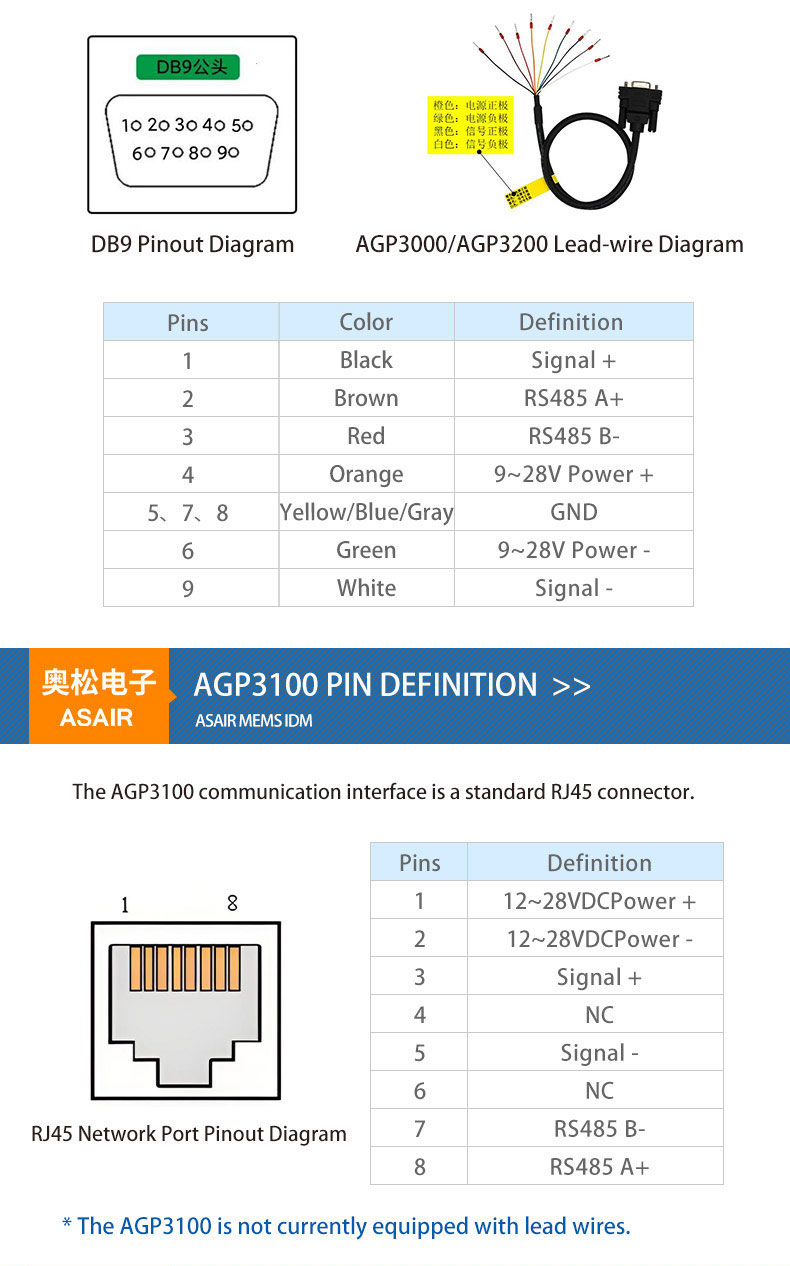

Output

RS485/0~10V

Operating Temperature

25±5℃
