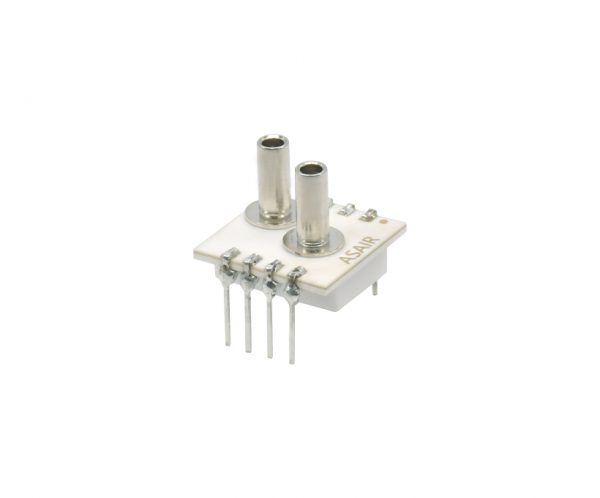

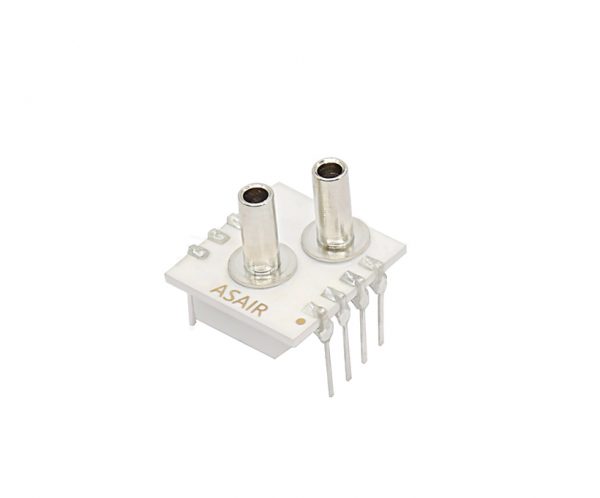

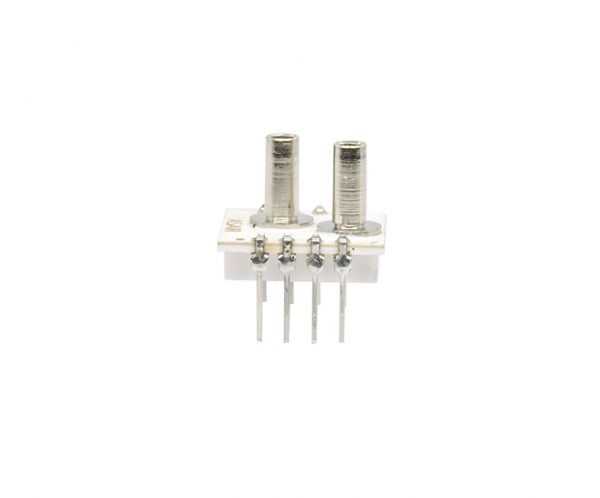

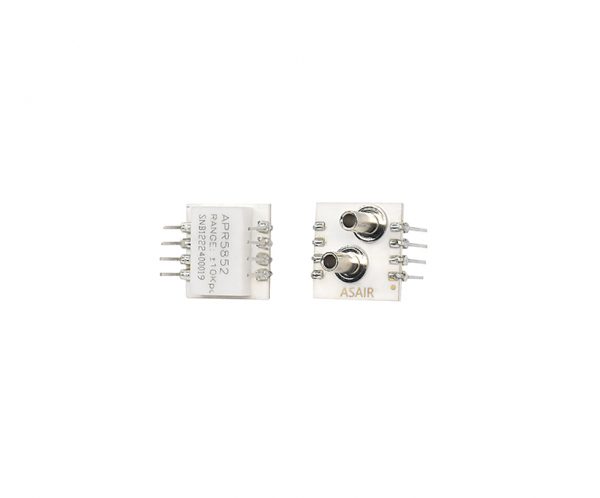

APR5852 Piezoresistive Pressure Sensor
APR5852 features a dedicated ASIC sensor chip, silicon microstructured pressure sensor and analog output output. APR5852 high performance pressure sensor can be directly mounted on standard PCB board, after amplification, high accuracy, calibrated pressure signal through analog output. Each sensor is rigorously calibrated and tested to ensure and meet customers’ large-scale applications.
Description
1. Product Overview：
APR5852 features a dedicated ASIC sensor chip, silicon microstructured pressure sensor and analog output output. APR5852 high performance pressure sensor can be directly mounted on standard PCB board, after amplification, high accuracy, calibrated pressure signal through analog output. Each sensor is rigorously calibrated and tested to ensure and meet customers’ large-scale applications.
2. Application Scope：
APR5852 can be used in consumer, electronics, medical, automotive, industrial, meteorological and other fields. It can also be usded in equipment such as HVAC, respirator and ventilation equipment products, testing and inspection equipment and other related differential pressure detection and control products.
3. Product Feature：
- Full calibration
- Analog voltage output
- Amplification, calibration and temperature Compensation
- Wide output range (0.5V~4.5V)
- Excellent long-term stability
- Easy to use with dual row pin design
- Fast response time
- Strong anti-interference ability
- Nonlinear correction for pressure and temperature

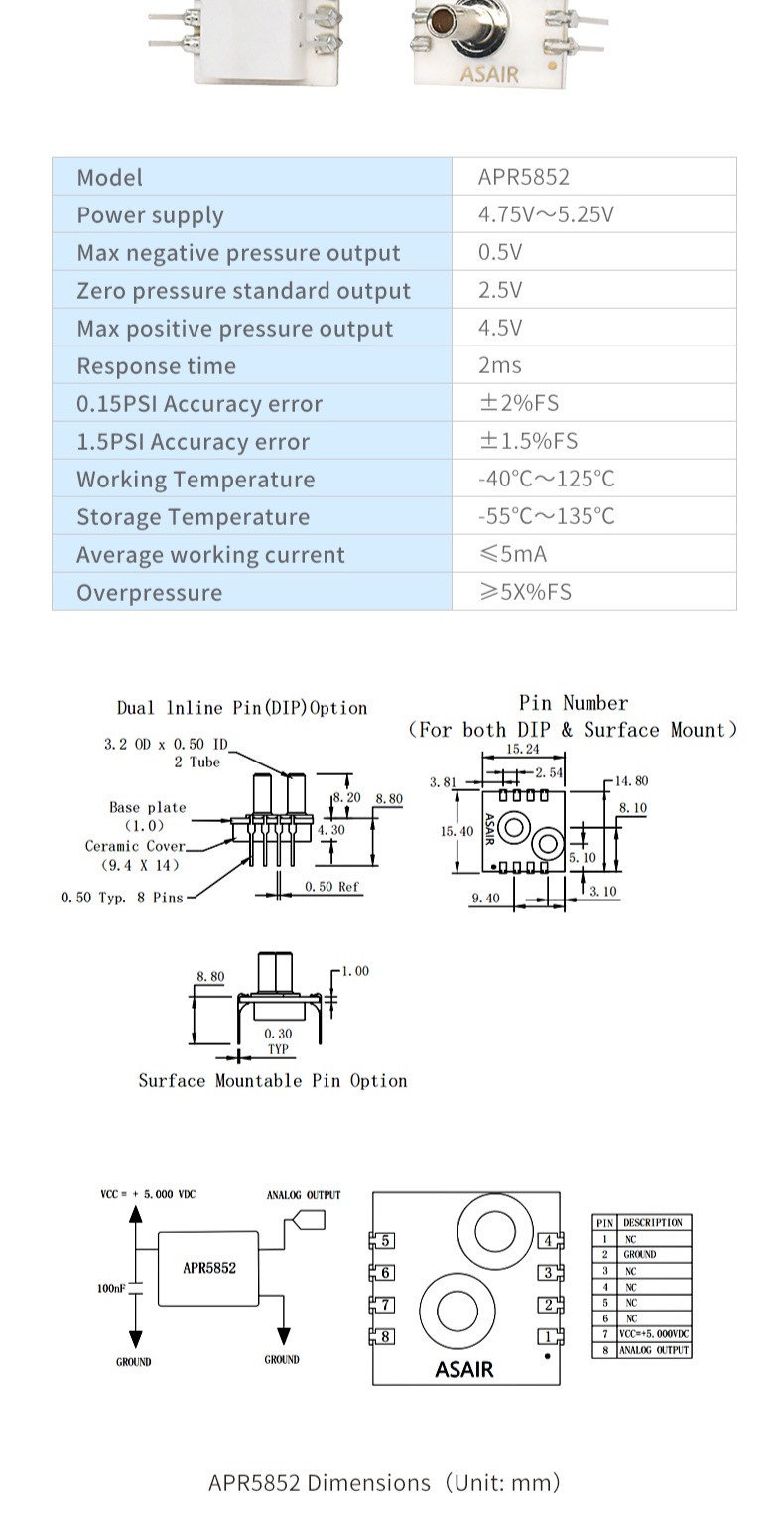

Additional information
| Power supply | 4.75V～5.25V |
|---|---|
| Working Temperature | -40℃～125℃ |
| Storage Temperature | -55℃～135℃ |
| Response time | 2ms |
| Max negative pressure output | 0.5V |
| Zero pressure standard output | 2.5V |
| Max positive pressure output | 4.5V |
