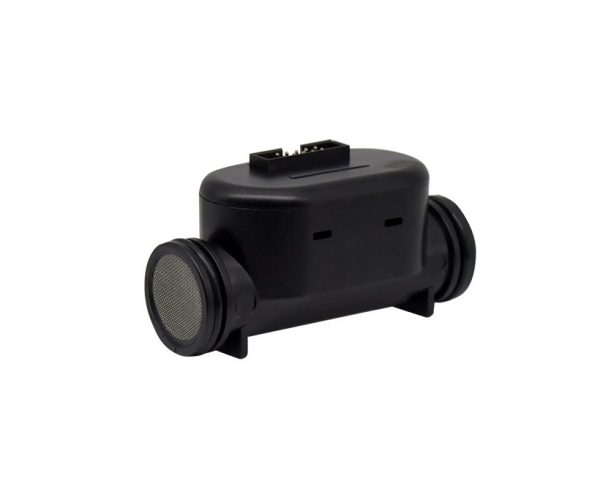

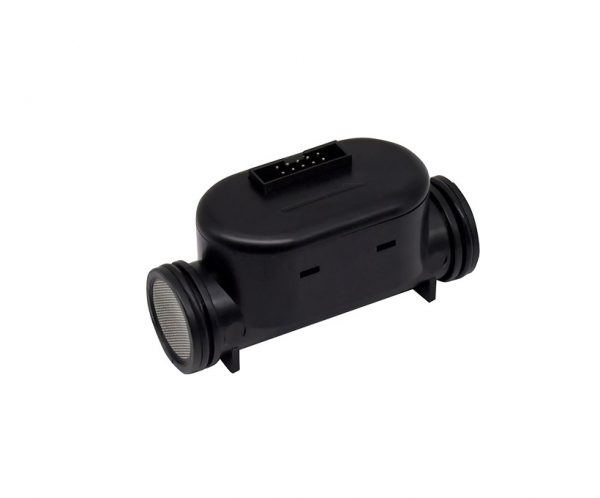

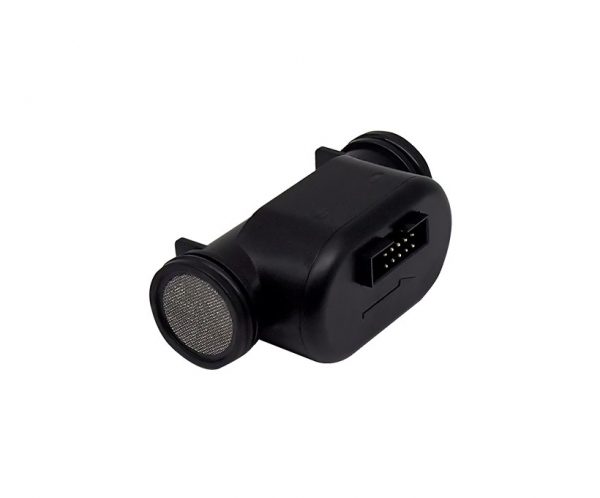

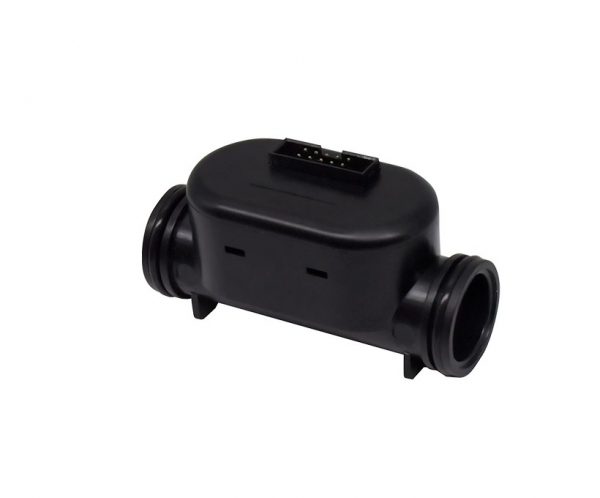

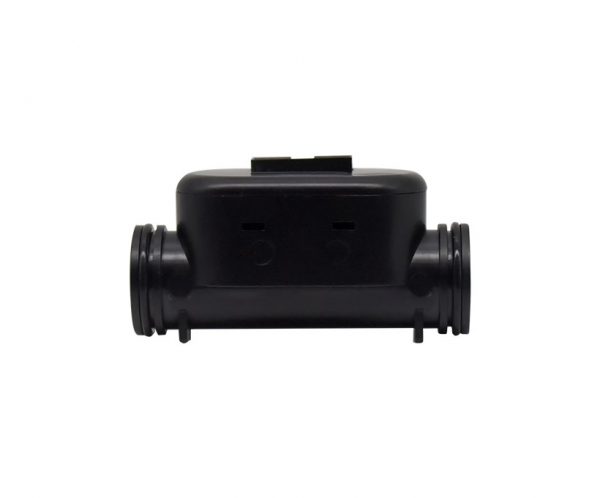

AFM3100 Flow Sensor
AFM3100 flow sensor detects the airflow velocity in pipe. This sensor is equipped with temperature compensation, digital and analog output, which makes it simple to use. AFM3100 flow sensor can be used to monitor the flow rate and gas return.
Description
1. Product Summary
AFM3100 flow sensor detects the airflow velocity in pipe. This sensor is equipped with temperature compensation, digital and analog output, which makes it simple to use. AFM3100 flow sensor can be used to monitor the flow rate and gas return.
2. Applications
AFM3100 can be used to monitor the mass flow of air, nitrogen, argon, carbon dioxide, helium, oxygen and other dry, clean and non-corrosive gases (except for flammable and explosive gases). It can be widely used in university scientific research, fire protection, environmental monitoring, tobacco, smart agriculture, food, medicine and other industries.
3. Product Characteristics
- Compact and easy to use
- Temperature: 0.2~2.4V analog voltage output
- Flow: 0.095~2.45V analog voltage output
- Standard digital output
- Excellent long-term stability
- Fast response time, quick recovery
- Strong anti-interference ability
Additional information

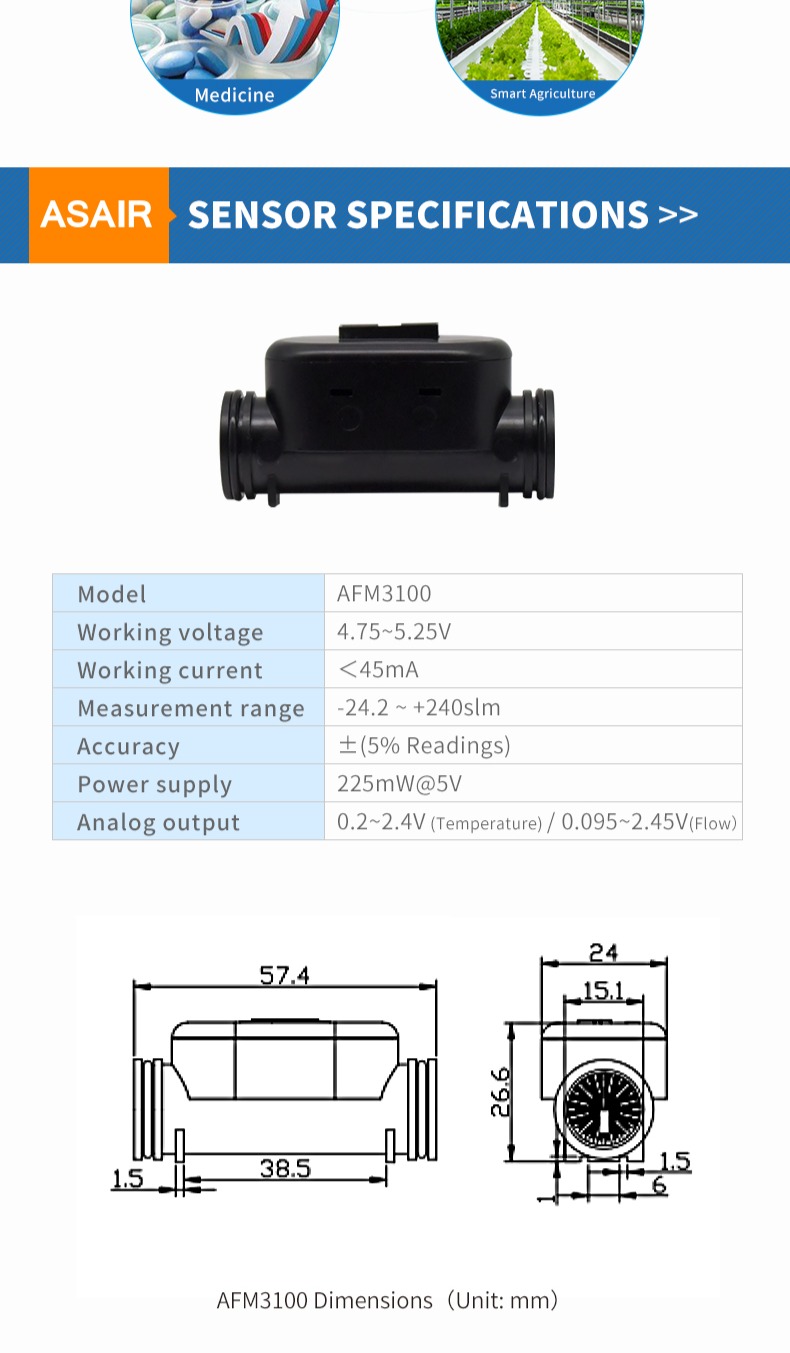

| Flow Range | -24.2 ~ +240slm |
|---|---|
| Accuracy | ±(5% Readings) |
| Working voltage | 4.75~5.25V |
| Working current | ＜45mA |
| Power supply | 225mW@5V |
