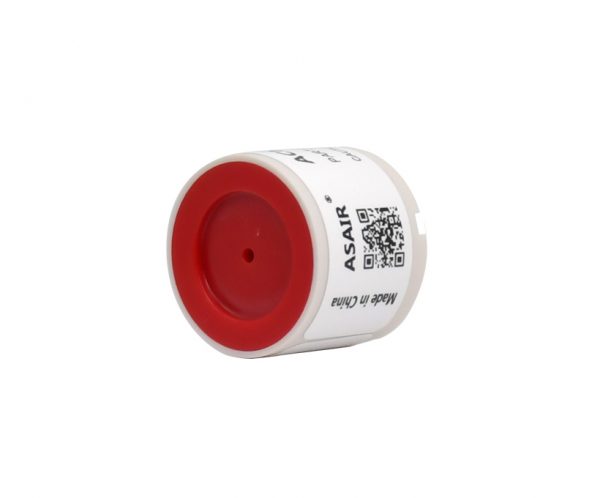

ACM2000 Carbon Monoxide Sensor

Product Overview

The ACM2000 carbon monoxide sensor has the characteristics of fast response and long service life. ACM2000 can directly replace other 4-series two-electrode carbon monoxide sensors, providing customers with high-quality and low-cost carbon monoxide detection solutions.

●Long service life
●Stable signal output
●Quick response
●Low power consumption

Please complete the form and we will contact you within 1 business day.

Description

1. Product Overview

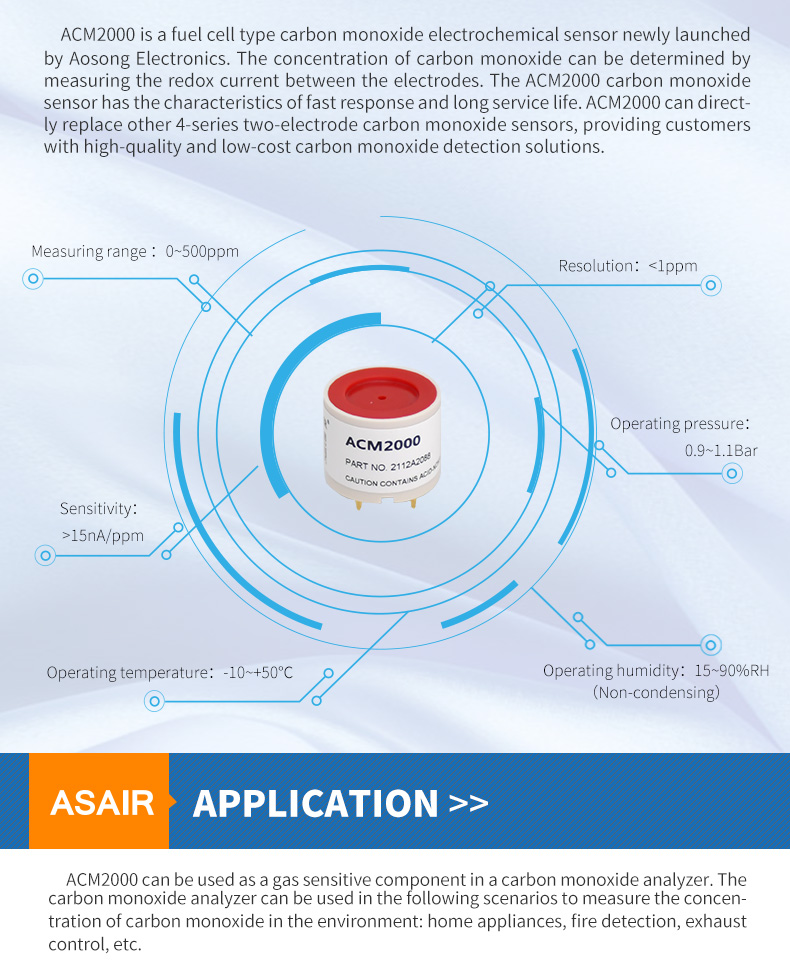

ACM2000 is the latest fuel cell carbon monoxide electrochemical sensor launched by Aosong Electronics. Measuring the concentration of carbon monoxide can be determined by the redox current between the electrodes. The ACM2000 carbon monoxide sensor has the characteristics of fast response and long service life. ACM2000 can directly replace other 4-series two-electrode carbon monoxide sensors, providing customers with high-quality and low-cost carbon monoxide detection solutions.



2. Application

ACM2000 carbon monoxide sensor can use as a gas-sensitive component in a carbon monoxide analyzer. It can operate in various environments and harsh conditions. It can be widely used in commercial, civil, and industrial fields, such as carbon monoxide, gas, and fire. Intelligent security type Gas water heaters, air quality testing instruments, air quality monitoring in underground parking lots, household and commercial air purification equipment, air quality testing in vehicles, new air systems for in-vehicle purification equipment, mine environment monitoring, and other fields.

3. Product Characteristics

  • Long service life
  • Stable signal output
  • Quick response
  • Low power consumption

4. Product Related Data Download

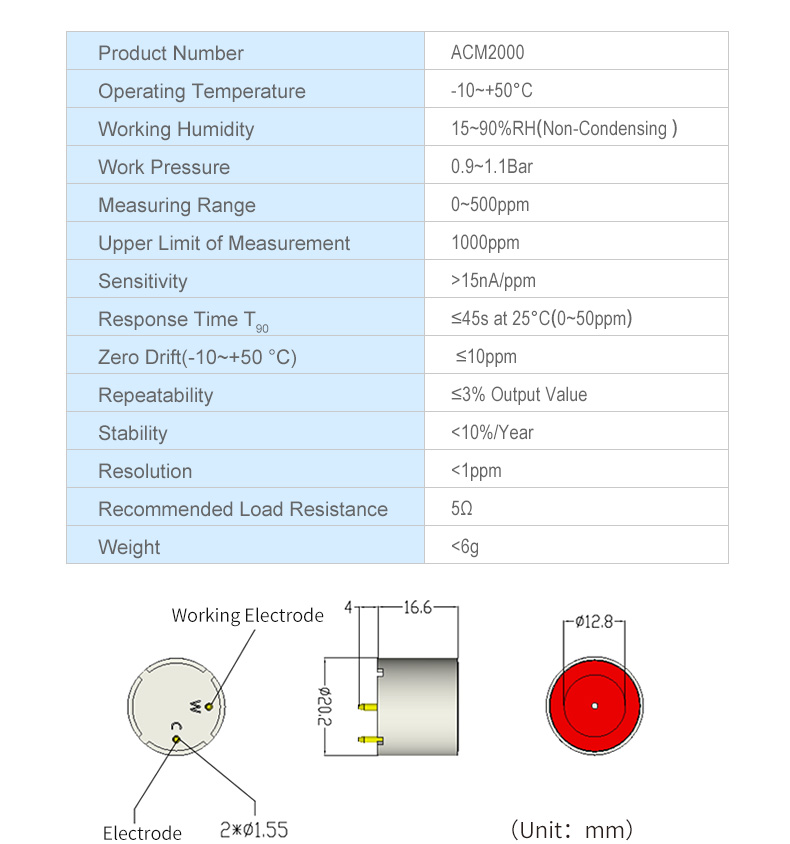

Additional information

Measurement Range

0~500 ppm

Maximum Overload

1000 ppm

Sensitivity

> 15 nA/ppm

Response time T90

≤ 45 s (0 to 50 ppm)

Zero drift (-10~50°C)

≤ 10 ppm

Repeatability

≤ 5%
